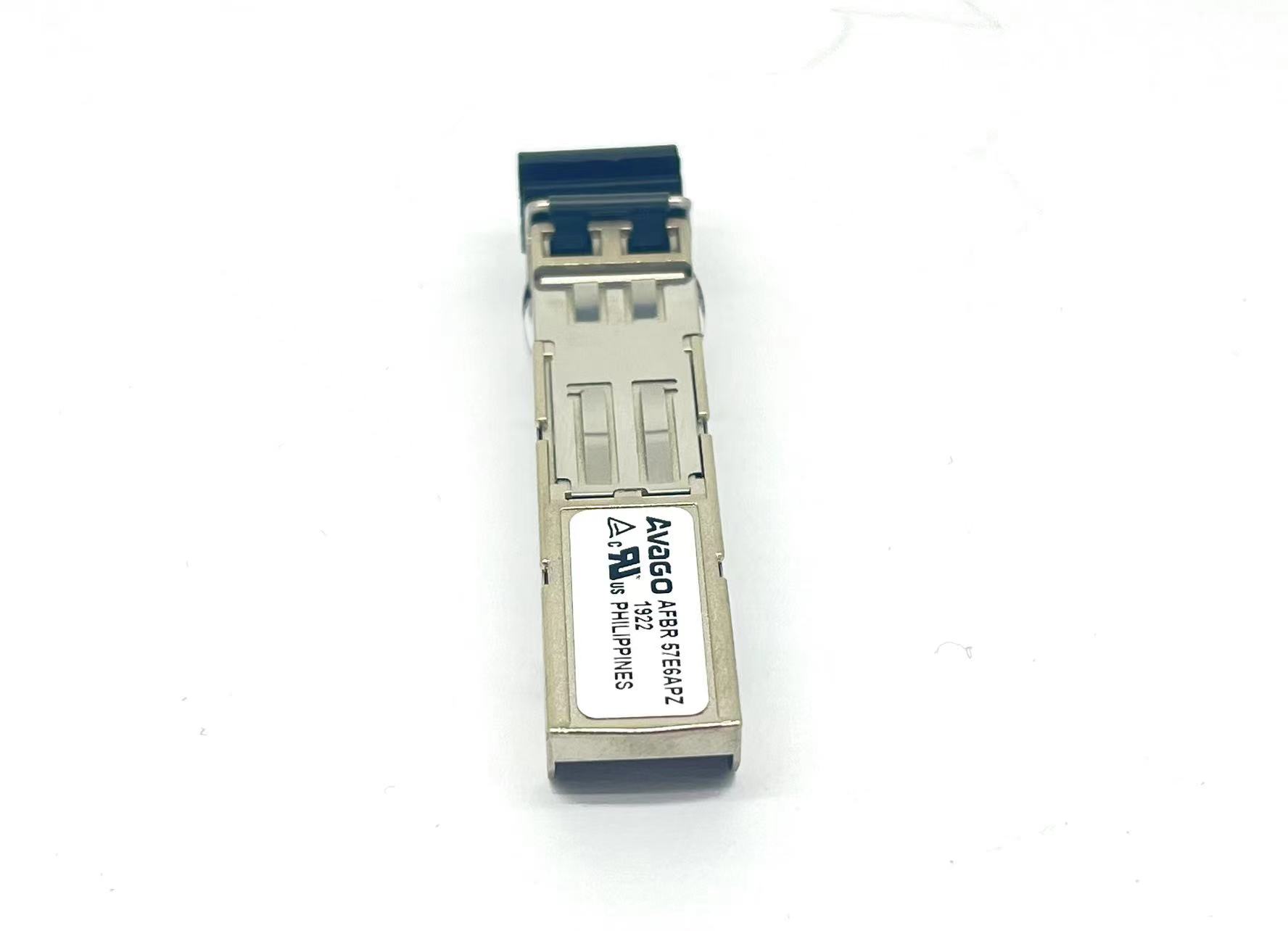

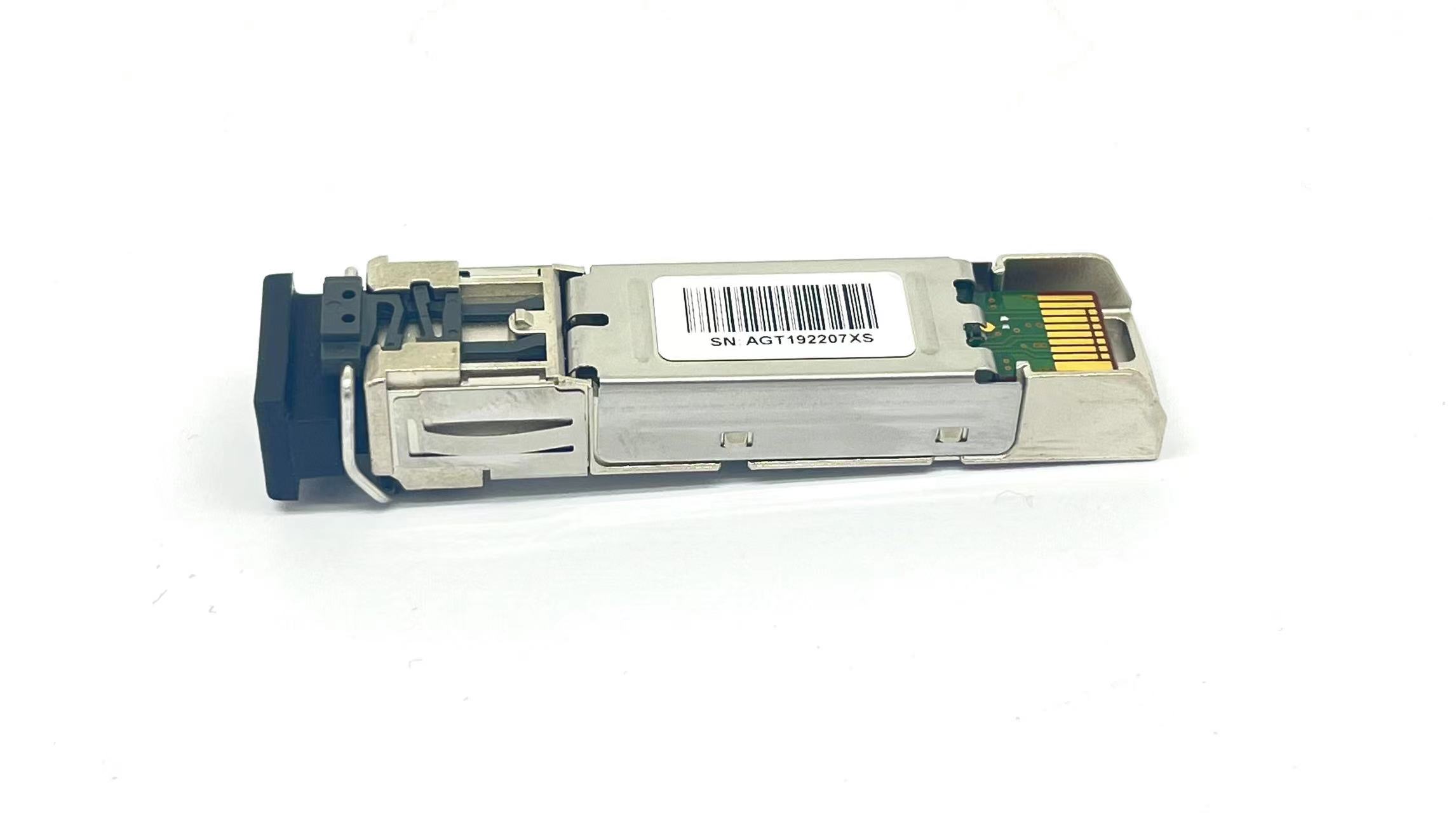

The Broadcom AFBR-57E6APZ is a low power, 125MBd small form-factor pluggable (SFP) fiber optic transceiver module device designed for Fast Ethernet and fiber distributed data interface (FDDI) applications. The device has an LC duplex connector optical interface and a digital diagnostic monitoring interface (DMI).

The AFBR-57E6APZ is compatible to the SFF-8074i for conventional SFP interface and the SFF-8472 for DMI. By way of 2-wire serial communications as defined in the SFF-8472 MSA, the AFBR-57E6APZ can provide real time information on temperature, LED bias current, LED average output power and receiver average input power. The device also has the ability to monitor the receiver loss of signal (RX_LOS).

Features

• Low power consumption: 255 mW (typ), 405 mW (max)
• Industrial operating temperature: -40 °C to +85 °C
• Link distances up to 2 km
• Operates on 50/125um and 62.5/125um multimode fiber (MMF)
• LC duplex connector optical interface
• Built-in DMI providing real time information on temperature, LED bias current, LED average output power and receiver average input power
• Squelched receiver outputs
• Bail de-latch
• Hot plug capability
• Compatible to SFF-8074i and SFF-8472 MSA specifications
• Compatible with 100BASE-FX version of IEEE 802.3u
• RoHS-compliant and lead-free

Applications

• Industrial / Factory Automation
• Motor Controls
• Fast Ethernet Networking
• FDDI Networking
•

详细产品文档请参阅：AVAGO AFBR-57E6APZ 125/155M低速工业控制/以太网光模块
