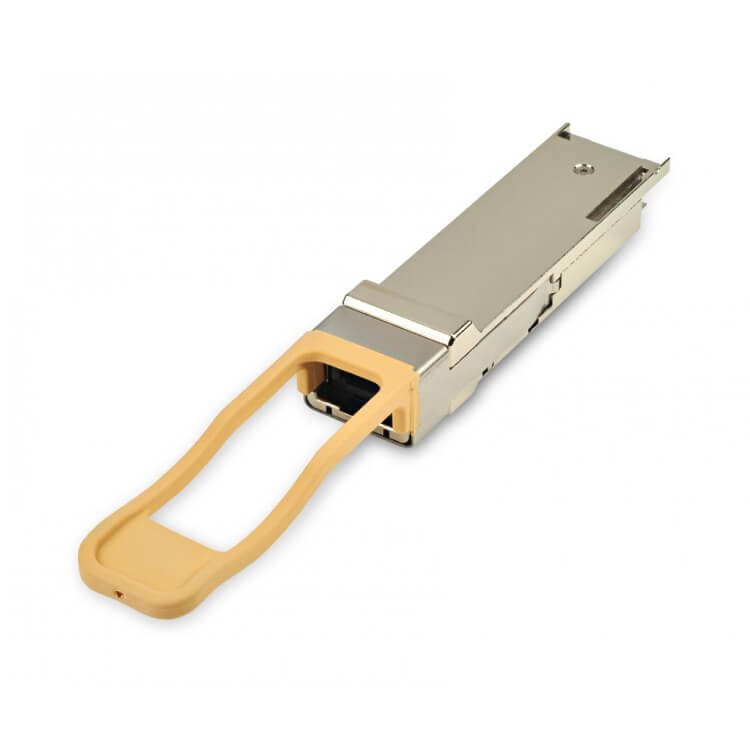

FTL410QE3C
Form Factor: QSFP+



FTL410QE3C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4 10GBASE-SR. The Gen 3 variant has built-in real-time digital diagnostic functions, including Tx and Rx power monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

key Features:

  • Four-channel full-duplex transceiver module
  • Hot-pluggable QSFP+ form factor
  • Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
  • Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
  • Unretimed XLPPI electrical interface
  • Maximum power dissipation < 1.5W
  • Reliable VCSEL array technology
  • Real-time digital diagnostic functions, including Tx and Rx power monitoring
  • Commercial temperature range 0°C to 70°C
  • Single 1×12 MPO receptacle
  • RoHS compliant


Applications:

  • 40GBASE-SR4 40G Ethernet
  • Breakout to 10GBASE-SR Ethernet
  • Proprietary interconnections

Specifications:

FTL410QE3C
Distance 150 m
Data Rate (max) 41.2 Gb/s
Protocol 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C) 0
High End Case Temperature (°C) 70
Diagnostics N/A
Transmitter 4x VCSEL
Receiver PIN
Voltage Supply 3.3
Connector MPO
Wavelength 850nm Band

Datasheet and Documents:

FTL410QE3C, 40BASE-SR4 QSFP+ Gen3 Optical Transceiver Module
